Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters

Large Image : Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters

Product Details:

Place of Origin:	Anhui, China
Brand Name:	OPEK

Payment & Shipping Terms:

Price:	$8,300.00/sets 1-9 sets

Contact Now

Fully Jacquard Flat Knitting Machine Double System Computerized Sales for End Sweaters

Description

Applicable Industries:	Garment Shops, Manufacturing Plant, Farms, Retail, Advertising Company	Condition:	New
Product Type:	Hat, Scarf, SWEATER	Type:	Jacquard
Production Capacity:	1.6m/S	Power:	1000 W
Knitting Style:	Flat	Knitting Method:	Double
Computerized:	Yes	Weight:	650 KG
Dimension(LWH):	25008501600mm	Warranty:	1 Year
Key Selling Points:	Low Maintenance Cost	Gauge:	1.5 GG, 3 GG, 12 GG, 14 GG, 2 GG, 16 GG, 9 GG, 5 GG, 10GG, 18GG, 16GG, 8GG, 3-5-7 Multi-gauge, 2.5gg,3gg, ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 14gg
Knitting Width:	52 Inch	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Marketing Type:	New Product 2024
Warranty Of Core Components:	1 Year	Core Components:	Motor, Gearbox
Product Name:	Chinese Sweater Computerized Flat Knitting Machine	After-sales Service Provided:	Engineers Available To Service Machinery Overseas
Knitting System:	Single Carriage With Double System	Keywords:	Computerized Flat Knitting Machine
Knittind Width:	52 Inch((36-100 Inch All Available ))	Machine Type:	Fully Jacquard Flat Knitting Machine
Function:	Knititing Shoes Upper/sweater/hat	Speed:	Higher Speed

Product Description & Specification

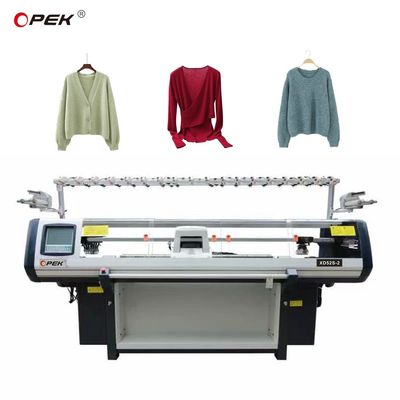

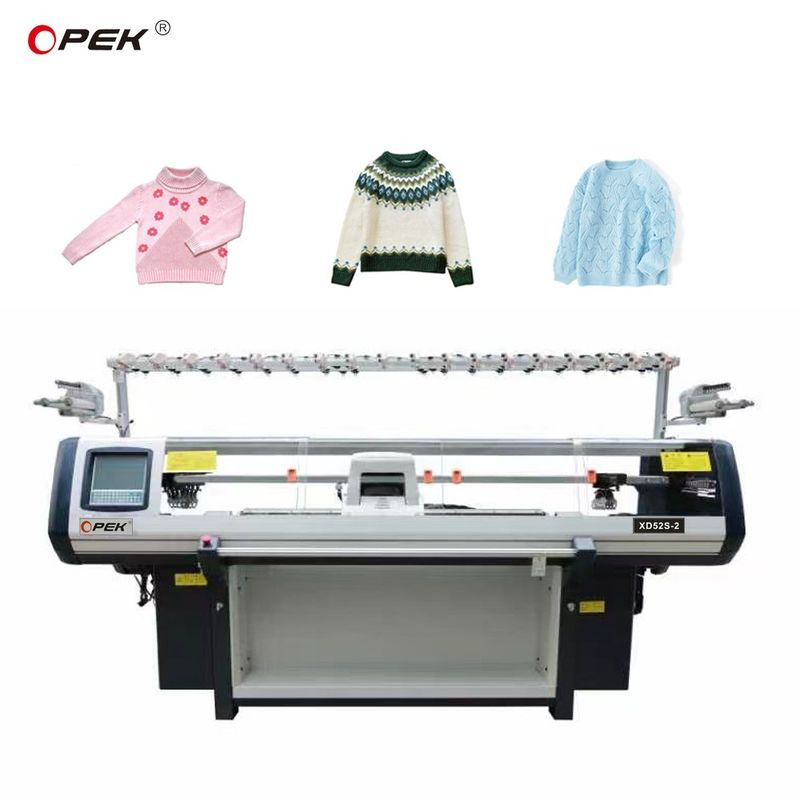

OPEK Brand XD52S-2 Double system Sweater Knitting Machine

Hefei Opeck Machinery Co.,Ltd company Double system machine has high roller, high-performance sinker, dynamic stitch, motor control reserving carriage,digital technology, high-speed and efficient, to achieve point, tuck, jacquard, intarsia, full needle jacquard, apparent shape, hidden shape, and other irregular patterns. suitable for wool, cashmere, cotton, chemical fiber, silk and all kinds of blended yarn, the production of sweaters, blanket, scarfs, gloves, hats and knitted apparel accessories.irregular multi-color jacquard,twist flowers weft organization,cord weave,racked stitch,cable,etc.

Model	Knitting Width	Machine size (mm)	Package size (mm)	Weight (kg)
XD36S-2	36 inch	2050X750X1750	2450X1000X1800	550
XD52S-2	52 inch	2450X750X1750	2850X1000X1800	650
XD60S-2	60 inch	2650X750X1750	3000X1000X1800	750
XD72S-2	72 inch	2950X750X1750	3000X1000X1800	950
XD80S-2	80 inch	3450X750X1750	3760X900X1440	1100

Certifications and Honor

Product Parameters

Knitting system	single carriage with double systems
Machine Speed:	Controlled by servo-motor with 24 section optional ,max speed reach 1.2m/S. varies according to gauge and knitting condition
Knitting Function:	Knit ,miss, tuck ,transfer, pointel, intarsia, jacquard, hide or apparent shaping and other regular or irregular patterns
Stitch density:	Controlled by 32 section electricity, density adjustment driven by stepping motor, range: 0-650
Racking:	AC Servo Motor drive, the maximum racking within 2 inches
Needle actuator:	Replaceable segment needle bed
Roller System:	Main and sub roller devices,32 section automatic control, subsection adjustable
Yarn Carriers:	6 yarn carriers are arranged on the left and right sides of the 3 double side guide rails.
Transmission system:	Belt drive, High precision AC servo motor control.
Data input:	Input and output patterns via USB, PC and Internet
Take down roller	Programmed instruction ,controlled by marching motor ,changeable 24 levels and selectable scope 0-99.
Safety device:	The whole machine cover to reduce noise and dust, the protecting cover is equipped with stopping sensor, emergency stopping and power off device
Power: Voltage:	AC 220V, Frequency: 50HZ/60HZ, Power:0.8KW

Knitting Samples

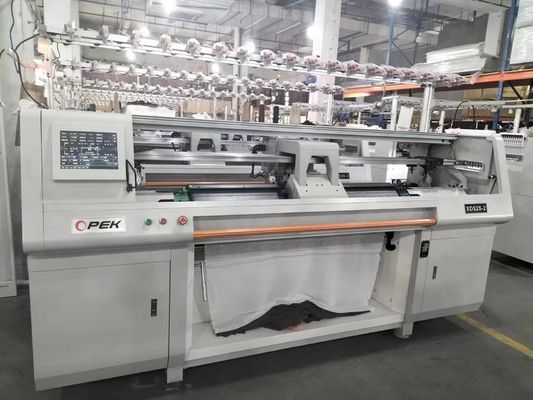

Flat Knitting Machine Workshop

Successful case

Company Introduction

Hefei OPEK Machinery CO.,Ltd is a goverment approved high-tech enterprise specializing in OPEK" brand circular knitting machine. After many years development, Opek company has profession.al R&D team and experience after-sale service team. Opek machines have obtained CE and ETL certification. Opek high speed automatic jacquard hat &scarf knitting machines, rib hat knitting machines and automatic hat sewing machine have been successfully exported to more than 30 countries around of the world, such as Germany, France, UK, Russia,India, Brazil, USA and etc. Along with continuous development of Opek company, Opek team have strong confidence to have more brilliant future in global and domestic market. Opek company always insist on "Quality First,Customer Foremost, Win-win Cooperation, Common Development" . Driven by innovation and research, Opek will provide you with high quality and high-value-added products continually, as sincerity of OPEK team. Opek sincerely welcome new and regular clients to visit and common development.

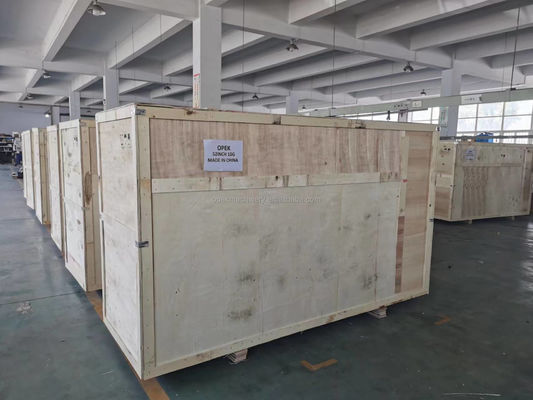

Packing and shipping
