Product Details:
|
| Applicable Industries: | Garment Shops, Manufacturing Plant, Farms, Retail, Advertising Company | Condition: | New |
|---|---|---|---|
| Product Type: | Hat, Scarf, SWEATER | Type: | Jacquard |
| Production Capacity: | 1.6m/S | Power: | 1000 W |
| Knitting Style: | Flat | Knitting Method: | Double |
| Computerized: | Yes | Weight: | 650 KG |
| Dimension(L*W*H): | 2500*850*1600mm | Warranty: | 1 Year |
| Key Selling Points: | Low Maintenance Cost | Gauge: | 1.5 GG, 3 GG, 12 GG, 14 GG, 2 GG, 16 GG, 9 GG, 5 GG, 10GG, 18GG, 16GG, 8GG, 3-5-7 Multi-gauge, 2.5gg,3gg, ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 14gg |
| Knitting Width: | 52 Inch | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Gearbox |
| Product Name: | Chinese Sweater Computerized Flat Knitting Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Knitting System: | Single Carriage With Double System | Keywords: | Computerized Flat Knitting Machine |
| Knittind Width: | 52 Inch((36-100 Inch All Available )) | Machine Type: | Fully Jacquard Flat Knitting Machine |
| Function: | Knititing Shoes Upper/sweater/hat | Speed: | Higher Speed |

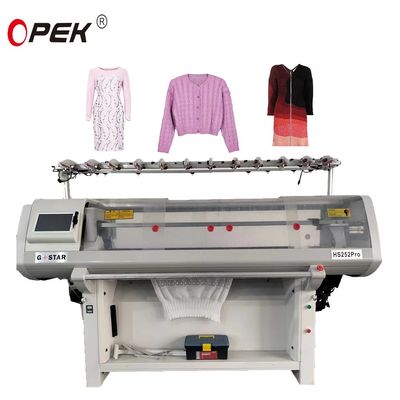

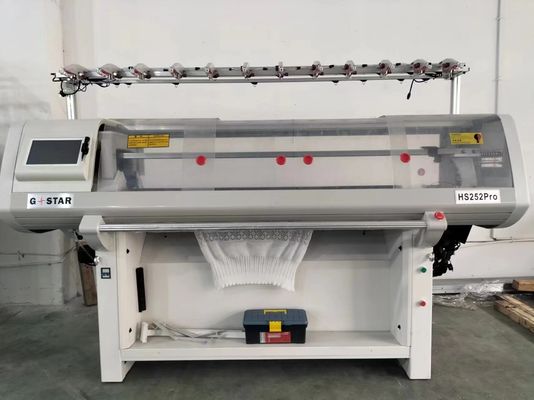

This system is automatic computerized flat knitting machine
It adopts digital technology to realize the knitting functions transfer tuck,eyelet stitch,jacquard,apparent shape, hidden shape and other regular pattern knitting functions.
It can knit basic stitch like plain stitch,rib fabric,links and interlock stitch,etc.
Irregular multi-color jacquard,twisted flower weft organization,cord weave,racked stitch,cable,intarsia,etc.
It is suitable to use synthetic,wool,acrylic,mixed fiber,yarn material etc to knit ready-made sweater,collar ,vamp,hat,gloves,scarf and accessories of cloth. So as to achieve multi-functional all-in-one machine

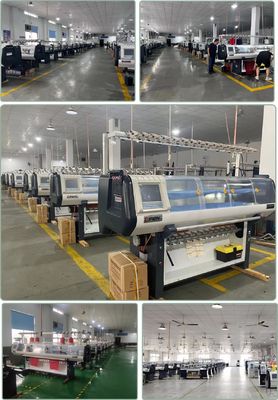

Workshop assembly line after layer upon layer of strict testing to ensure the stable and efficient work of the machine
Gauge : | 3G,3.5G,5G,7G,8G,9G,10G,12G,14G,16G,3-5-7G multi-gauge | ||||
Knitting width : | 52 inches (60, 72, 80 inches Customizable) | ||||
knitting function: | Jacquard,Transfer,Miss,Intarsia,Pointelle,Cable,Hide And Other Regular Pattern Knitting Fuctions.(Noted:Tuck can't be knitted with other knitting action in same line) | ||||
Knitting speed: | 1.4m/Second(Max), 32 section adjustable | ||||
Knitting system: | Single carriage with Double System | ||||
Stitch density: | Controlled by 32 section electricity, density adjustment driven by stepping motor, range: 0-650 | ||||
Needle Bed Racking: | AC Servo Motor drive, the maximum racking within 2 inches | ||||
Needle Selection System: | 8 section electronic needle actuator | ||||
Yarn Feeder: | 2 pcs Proactive Yarn Feeders | ||||
Yarn Carriers: | 2*8 yarn carriers are arranged on the left and right sides of the 4 double side guide rails. | ||||
Transmission system: | Belt drive, High precision AC servo motor control. | ||||
Data input: | Input and output patterns via USB, PC and Internet | ||||
Protection system: | Automatic stopping device if yarn broken, yarn knot, batching, striking, completion, overload, designated starting and stopping, program error | ||||
Safety device: | The whole machine cover to reduce noise and dust, the protecting cover is equipped with stopping sensor, emergency stopping and power off device | ||||
Power Supply: | Voltage: AC 220V, Frequency: 50HZ/60HZ, Power:1KW | ||||
Volume and weight | 2450*900*1800mm 700kgs | ||||
