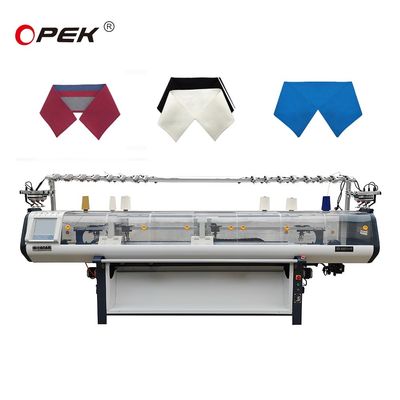

Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller

All Products

Flat Knitting Machine

(113)

Automatic Embroidery Machine

(140)

Hat And Scarf Knitting Machine

(202)

Rib Hat Knitting Machine

(59)

Cap Knitting Machine

(9)

Automatic Hat Sewing Machine

(32)

Collar Knitting Machine

(52)

Shoe Upper Knitting Machine

(15)

Circular Cuff Knitting Machine

(8)

Automatic Sewing Machine

(92)

Knitting Machine Parts

(39)

Ungrouped

(72)
Certification
China Hefei Opek Machinery Co., Ltd. certification
China Hefei Opek Machinery Co., Ltd. certification
I'm Online Chat Now

Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller

Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller
Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller

Large Image :  Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller

Product Details:
Place of Origin: Anhui, China
Brand Name: OPEK
Payment & Shipping Terms:
Price: $7,500.00/sets 1-4 sets
Contact Now

Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller

Description
Applicable Industries: Garment Shops, Manufacturing Plant, Home Use, Retail Condition: New
Product Type: SWEATER, Collar, Shoe Upper Type: Jacquard
Production Capacity: 500set/month Power: 150 W, 220V/single Phase 50/60HZ
Knitting Style: Warp Knitting Method: Single
Computerized: Yes Weight: 650 KG
Dimension(L*W*H): 2600*1000*1650mm Warranty: 1 Year
Key Selling Points: High Productivity Gauge: 16 GG, 7G,8G,9G,10G,12G,14G,16G
Knitting Width: 80 Inch Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: New Product 2020
Warranty Of Core Components: 2 Years Core Components: Motor
Product Name: Collar Knitting Machine Width: 52inch
Knitting Speed: Max1.2m/sec. Yarn Carrier: 12yarn Carriers On 3double Rails
Needle Selection: Fully Jacquard Selection Via Special Solenoids Wooden Case: 2600*1000*1650mm
System: Single System Motor: Servo

Product Description
Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller 0
Single carriage with single system, this S-Series computerized flat knitting machine are used digital technology to achieve the patterns of knit, transfer, tuck, pointelle, intarsia, jacquard, embroidery, apparent shape, hidden shape, and other
regular or irregular patterns knitting functions, can knit basic single or double jersey plain fabric, irregular multi-color jacquard, intarsia, cable and pointelle structure patterns, which suitable to knit by yarns of pure silk, mixed silk, synthetic, wool, acrylic, mixed fiber material etc. knitted for shaping fabric and accessories of collar, cardigan, rib ,cuff, scarf, picket and trousers etc.
Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller 1

Product parameter


GUAGE:
7G、8G、9G、10G、12G、14G、16G
Cam system：
Single carriage with single system
Width
52inch
Knitting speed
Max1.2m/sec.Knitting speed varies according to gauge,yarn and knitting condtion
Yarn carrier
12yarn carriers on 3double rails
Needle selection
Fully jacquard selection via special solenoids
Transfer
Two-way transfer,front or back,independent of carriage direction.
Needle bed
Replaceable segment needle bed
Stop motion
Yarn break,knot,press off,needle break,shock,over torque,piece count,over run, program error etc.
Drive
AC servo motor,tooth shape driving belt,no oil needed.Variable adjustable progammable speed levels.
Safety cover
Fully safety cover for anti-noise and dust proofing.Emergency stop buttons.
Fluorescent lamp
Inside of safety cover and fabric take down
Wooden case
2600*1000*1650mm
N./G. Weight
650kgs
Operation&display
LCD display Touch screen,Chinese、English and Spanish versions available.
Power
220V/single Phase 50/60HZ

Our workshop

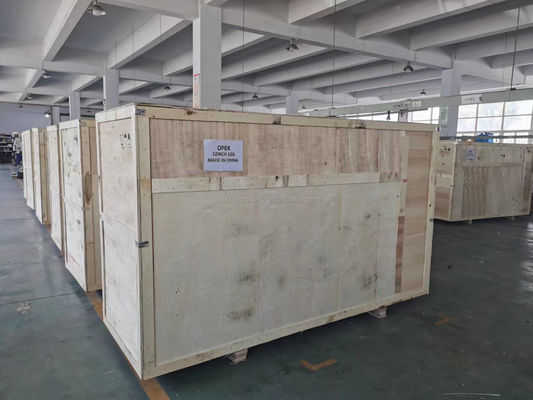

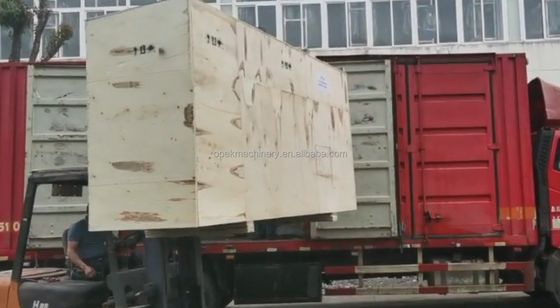

Packaging and delivery
Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller 2
Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller 3
Single Knitting Method Collar and Cuff Flat Machine with Servo Motor Opek Best Seller 4
