Product Details:
|
| Applicable Industries: | Garment Shops, Manufacturing Plant, Farms, Retail, Advertising Company | Condition: | New |
|---|---|---|---|
| Product Type: | SWEATER, Collar | Type: | Jacquard |
| Production Capacity: | 1.2m/S | Power: | 1.5 W |
| Knitting Style: | Flat | Knitting Method: | Single |
| Computerized: | Yes | Weight: | 1280 KG |
| Dimension(L*W*H): | 2790*2010*940mm | Warranty: | 1 Year |
| Key Selling Points: | Low Maintenance Cost | Gauge: | 1.5 GG, 2 GG, 16 GG, 9 GG, 5 GG, 10GG, 18GG, 16GG, 8GG, 3-5-7 Multi-gauge, 2.5gg,3gg, ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 14gg |
| Knitting Width: | 80 Inch | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 2 Years | Core Components: | Motor, Gearbox |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Product Name: | 1 System Computerized Flat Knitting Machine |
| Knitting System: | Single Carriage With One System | Multi-gauge: | 3-5-7 Multi-gauge , 8-10-12 Multi-gauge |
| Application: | Sweater Knitting , Fabric Knitting , Hat And Scarf Knitting | Keywords: | 1 System Computerized Flat Knitting Machine |
| Knittind Width: | 80 Inch | System: | HP System |
| After Warranty Service: | Video Technical Support | Port: | SHANGHAI Or NINGBO |

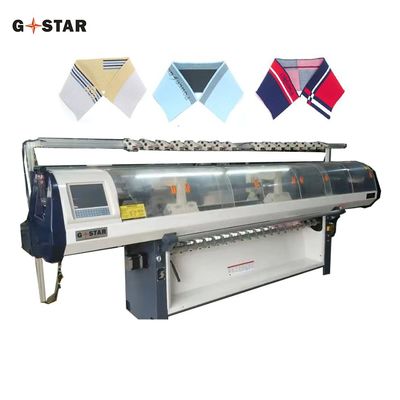

XD80S(1+1) flat knitting machine
1:High speed &high output
2:CE and ISO 9001:2008 certificate.
3:Easy operation,knitting system:Single carrier with three system
4.Max speed:1.2m/s.
Gauge : | 2.5gg,3gg, 3-5-7 multi-guague ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 8-10-12 multi-gauge ,14gg,16gg ,18gg | ||||
Knitting bed width : | 52 /56 /60/72/80 inch | ||||
knitting function: | Knit ,miss,tuck,transfer, pointel, intarsia,jacquard,hide,or apparent shaping and other regular or irregular patterns. | ||||
Knitting speed: | Controlled by servo motor, 24 sections speed optional, max 1.2M/S.varies according to gauge and knitting condition | ||||
Knitting system: | Single carriage with three system | ||||
Needle bed: | Replaceable segment needle bed ,flat needle bed | ||||
Take down roller: | Programmed instruction,controlled by marching motor, changeable 24 levels and selectable scope: 0-99. | ||||
Transfer: | Combined cam box single or double system can work independently and one system can transfer the stitch While the other system keeps knitting. | ||||
Racking: | Controlled by servo motor racking within 2 inches and with fine adjusting function. | ||||
Protection: | The machine will automatically alarm if yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur. | ||||
Stitch system: | Controlled by stepping motor, 24 section stitch selectable, adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. | ||||
Encoder: | Advanced encoder adopted. | ||||
Yam carrier: | 2×8 Yarn carriers on each side of 4 guide rails, shiftable on any needle position(special instarsia carriers available). | ||||
Sinker system | Controlled by stepping motor, adjustable to different knitwear, have various results of shaping and patterns. | ||||
Power: | Singe-phase 220V, adopts advanced CMOS technology, having memorizing function at power shock stop. | ||||
Controller: | 1. Screen:Adopt LCD industrial screen and figure interface,input device:USB. Internal storage 32M.The latest system 1G. A great amount of design files can be stored at the same time and they can be fetched out for using at any time as per production requirements. | ||||
2. Monitoring menu,each kind of operating parameter can be shown, and they can be adjusted at any time when the machine is running is visual and easy to understand and upgrade. | |||||
3. Free design is visual and easy to understand and upgrade | |||||
4.Multi language version :there are Chinese .English and Arabic etc. languages version ,the other language version set up shall according to customers requirement . | |||||
Volume and weight | Length×width×height: 2790×1100×1500mm Net weight :1280kg | ||||
