Product Details:
|
| Applicable Industries: | Hotels, Garment Shops, Manufacturing Plant, Retail, Construction Works , Advertising Company | Condition: | New |
|---|---|---|---|
| Product Type: | Collar | Type: | Jacquard |
| Production Capacity: | 500set/month | Power: | 1.5 W, 220V/single Phase 50/60HZ |
| Knitting Style: | Warp, Flat | Knitting Method: | Single |
| Computerized: | Yes | Weight: | 650 KG |
| Dimension(L*W*H): | 2600*1000*1650mm | Warranty: | 1 Year |
| Key Selling Points: | Sustainable | Gauge: | 1.5 GG, 3 GG, 14 GG, 2 GG, 9 GG, 3-5-7 Multi-gauge, 8-10-12 Multi-gauge, 7G,8G,9G,10G,12G,14G,16G |
| Knitting Width: | 52 Inch | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Pressure Vessel, Motor, Engine, Gearbox |

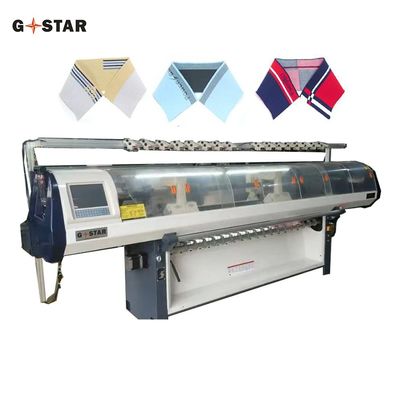

| Product Name: | Collar Knitting Machine | Width: | 52inch |
| Knitting Speed: | Max1.2m/sec. | Yarn Carrier: | 12yarn Carriers On 3double Rails |
| Needle Selection: | Fully Jacquard Selection Via Special Solenoids | Wooden Case: | 2600*1000*1650mm |
| Port: | SHANGHAI &NINGBO |
GUAGE: | 7G、8G、9G、10G、12G、14G、16G |
Cam system： | Single carriage with single system |
Width | 52inch |
Knitting speed | Max1.2m/sec.Knitting speed varies according to gauge,yarn and knitting condtion |
Yarn carrier | 12yarn carriers on 3double rails |
Needle selection | Fully jacquard selection via special solenoids |
Transfer | Two-way transfer,front or back,independent of carriage direction. |
Needle bed | Replaceable segment needle bed |
Stop motion | Yarn break,knot,press off,needle break,shock,over torque,piece count,over run, program error etc. |
Drive | AC servo motor,tooth shape driving belt,no oil needed.Variable adjustable progammable speed levels. |
Safety cover | Fully safety cover for anti-noise and dust proofing.Emergency stop buttons. |
Fluorescent lamp | Inside of safety cover and fabric take down |
Wooden case | 2600*1000*1650mm |
N./G. Weight | 650kgs |
Operation&display | LCD display Touch screen,Chinese、English and Spanish versions available. |
Power | 220V/single Phase 50/60HZ |
