Product Details:
|
| Applicable Industries: | Garment Shops, Manufacturing Plant, Home Use, Retail, Advertising Company | Condition: | New |
|---|---|---|---|
| Product Type: | Hat, Scarf, SWEATER, Collar | Type: | Jacquard |
| Production Capacity: | 1.4m/S | Power: | 1.5 W |
| Knitting Style: | Warp, Flat | Knitting Method: | Three System |
| Computerized: | Yes | Weight: | 1650 KG |
| Dimension(L*W*H): | 4000*1000*1800 | Warranty: | 1 Year, 3Year |
| Key Selling Points: | Automatic | Gauge: | 1.5 GG, 3 GG, 7 GG, 12 GG, 14 GG, 16 GG, 9 GG, 5 GG, 10GG, 2.5GG, 18GG, 16GG, 3-5-7 Multi-gauge, 8-10-12 Multi-gauge, 2.5gg,3gg, ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 14gg |
| Knitting Width: | 80 Inch | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | New Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| Product Name: | 80INCH 3system Sweater Knitting Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Knitting System: | Single Carriage With Three System System | Application: | Sweater Knitting , Fabric Knitting , Hat And Scarf Knitting |
| Machine Type: | High Speed Fully Computerized Jacquard Knitting Machine | Brand: | OPEK |
| Certificate: | CE ISO | Port: | SHANGHAI Or NINGBO |
.
Gauge : | 2.5gg,3gg, 3-5-7 multi-guague ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 8-10-12 multi-gauge ,14gg,16gg ,18gg | ||||
Knitting bed width : | 52 /56 /60/72/80 inch | ||||
knitting function: | Knit ,miss,tuck,transfer, pointel, intarsia,jacquard,hide,or apparent shaping and other regular or irregular patterns. | ||||
Knitting speed: | Controlled by servo motor, 24 sections speed optional, max 1.2M/S.varies according to gauge and knitting condition | ||||
Knitting system: | Single carriage with three system | ||||
Needle bed: | Replaceable segment needle bed ,flat needle bed | ||||
Take down roller: | Programmed instruction,controlled by marching motor, changeable 24 levels and selectable scope: 0-99. | ||||
Transfer: | Combined cam box single or double system can work independently and one system can transfer the stitch While the other system keeps knitting. | ||||
Racking: | Controlled by servo motor racking within 2 inches and with fine adjusting function. | ||||
Protection: | The machine will automatically alarm if yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur. | ||||
Stitch system: | Controlled by stepping motor, 24 section stitch selectable, adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. | ||||
Encoder: | Advanced encoder adopted. | ||||
Yam carrier: | 2×8 Yarn carriers on each side of 4 guide rails, shiftable on any needle position(special instarsia carriers available). | ||||
Sinker system | Controlled by stepping motor, adjustable to different knitwear, have various results of shaping and patterns. | ||||
Power: | Singe-phase 220V, adopts advanced CMOS technology, having memorizing function at power shock stop. | ||||

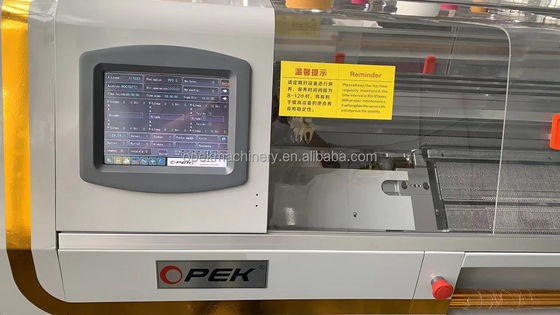

Controller: | 1. Screen:Adopt LCD industrial screen and figure interface,input device:USB. Internal storage 32M.The latest system 1G. A great amount of design files can be stored at the same time and they can be fetched out for using at any time as per production requirements. | ||||
2. Monitoring menu,each kind of operating parameter can be shown, and they can be adjusted at any time when the machine is running is visual and easy to understand and upgrade. | |||||
3. Free design is visual and easy to understand and upgrade | |||||
4.Multi language version :there are Chinese .English and Arabic etc. languages version ,the other language version set up shall according to customers requirement . | |||||
Volume and weight | Length×width×height: 2790×1100×1500mm Net weight :1280kg | ||||
