Product Details:
|
| Applicable Industries: | Garment Shops, Manufacturing Plant, Home Use, Retail | Condition: | New |
|---|---|---|---|
| Product Type: | Hat | Type: | Circular |
| Production Capacity: | 600set/month | Power: | 1KW |
| Knitting Style: | Warp | Knitting Method: | Single |
| Computerized: | Yes | Weight: | 325KG |
| Dimension(L*W*H): | 752*663*1418mm | Warranty: | 3 Years |
| After-sales Service Provided: | Video Technical Support, Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas | Motor: | Servo Motor |
| Screen: | Touch Screen | Alarm: | Fully Auto Alarm |
| Add Oil System: | With Auto Lubrication | Certificate: | ISO9001 CE |
| System: | Fully Computerized Control | Application: | Professional Knitting Cap And Scarf .Etc |
| Color: | Yellow | Machine Type: | Automatic Circular Loom Machine |
| Port: | Shanghai ,Ningbo Port |
Specification
1. Cylinder Size : 7’’ 8’’ 9" 10’’
2. Needles : 144N-392N According to customer request
3. R.P.M : 120Rpm/Min.
4. Machine is equipped with 11 sets of 16# high-speed and stable selection actuators (needle selection )
5. Color : 7 Feeds +4 Feeds ,Single feed 7-color knitting in the same row ,double feeding 4-color knitting in the same row .(single feed
6. with double feed can exchange )Max for 14 color .
7. Auto lubrication
8. Main servo-motor : 1KW
9. Power Source :110V/ 220V/380V ,50/60Hz
OPEK knitting machine adopts the latest triangle design and uses superior material & the latest picture design system. Once program is loaded into the computer chip correctly,changing of pictures will be completed only within several minutes . It no need special skill , so the operation is really easy . So this knitting machine can be called a necessity for the production line of the hats and scarf industry
YOUR SUCCESS ,OUR MISSION!

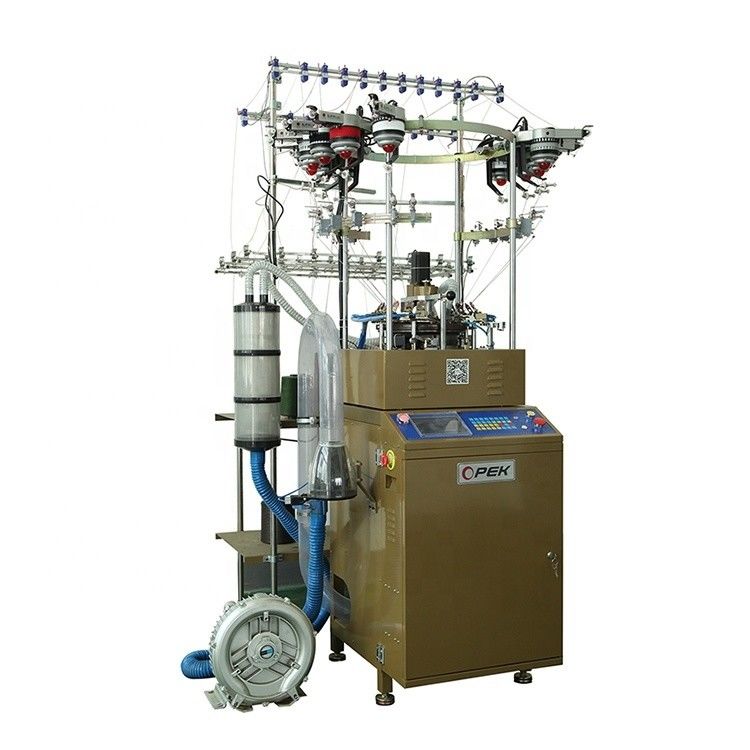

Fully automatic circular hat scarf knitting loom machine
