Product Details:
|
| Applicable Industries: | Garment Shops, Manufacturing Plant, Farms, Retail, Advertising Company | Condition: | New |
|---|---|---|---|
| Product Type: | Hat, Scarf, SWEATER, Collar | Type: | Jacquard |
| Production Capacity: | 1.2m/S | Power: | 1.5 W |
| Knitting Style: | Flat | Knitting Method: | Double |
| Computerized: | Yes | Weight: | 1280 KG |
| Dimension(L*W*H): | 2790*2010*940mm | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Gauge: | 1.5 GG, 12 GG, 16 GG, 5 GG, 3-5-7 Multi-gauge, 8-10-12 Multi-gauge, 2.5gg,3gg, ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 14gg |
| Knitting Width: | 60 Inch | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 2 Years | Core Components: | Motor, Bearing, Gear, Gearbox |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Keywords: | 3 System Computerized Flat Knitting Machine |
| Knitting System: | Single Carriage With Three System System | Multi-gauge: | 3-5-7 Multi-gauge , 8-10-12 Multi-gauge |
| Application: | Sweater Knitting , Fabric Knitting , Hat And Scarf Knitting | Knittind Width: | 60 Inch |
| Brand: | Opek | Voltage: | 220V |
| Port: | SHANGHAI Or NINGBO |

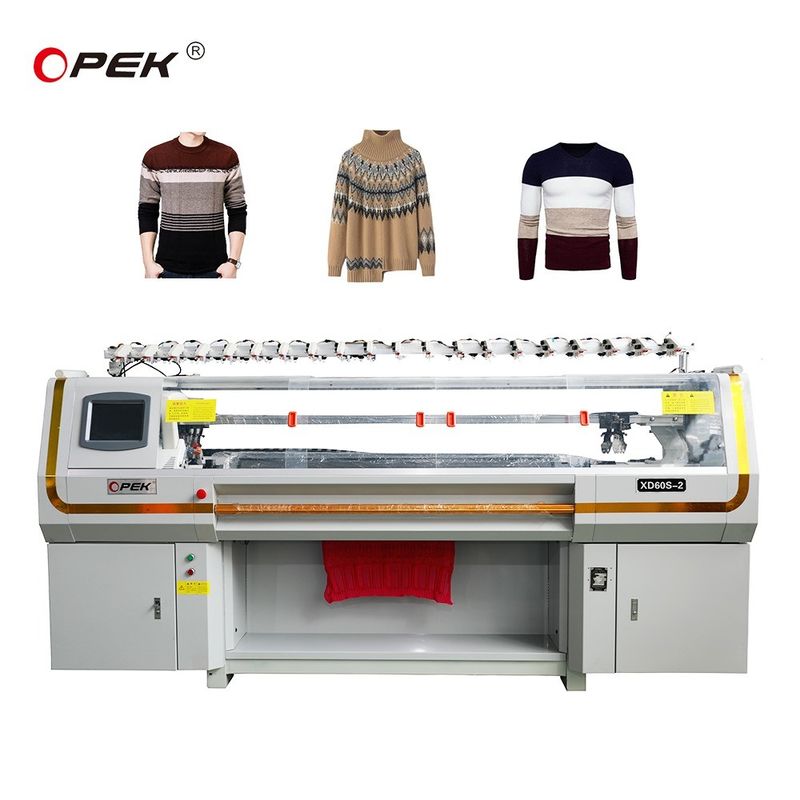

three system flat knitting machine
1:High speed &high output
2:CE and ISO 9001:2008 certificate.
3:Easy operation,knitting system:Single carrier with three system
4.Max speed:1.2m/s.
Gauge | 2.5G,5G,7G,8G,9G,10G,12G,14G,multi gauge 3-5-4G |
Knitting width | 52 /56 /60/72/80 inch |
Knitting function | Knit ,miss,tuck,transfer, pointel, intarsia,jacquard,hide,or apparent shaping and other regular or irregular patterns. |
Knitting speed | Controlled by servo motor, 24 sctions speed optional, max 1.2M/S,varis according to gauge and knitting condition. |
Needle bed | Replaceable segment neeedle bed |
Knitting system | Single carriage with double system |
Transfer | Combined cam box single or double system can work independently and one system can transger the stitch while the other sustem keeps knitting. |
Racking | Controlled by servo motor racking within 2inches and with fine adjusting function |
Protection | The machine will automactically alarm if yarn-breaking knots floating yarn rewind end of knitting,fail of racking needle breakage error programming occur |
Power | Single phase 220V,adopts advanced cmos technology,having memorizing function at power shock stop |
Encoder | Advanced encoder adopted. |
