Product Details:
|
| Applicable Industries: | Garment Shops, Manufacturing Plant, Home Use, Retail | Condition: | New |
|---|---|---|---|
| Product Type: | SWEATER | Type: | Jacquard |
| Production Capacity: | 1.2m/S | Power: | 1.5 W |
| Knitting Style: | Warp | Knitting Method: | Three System |
| Computerized: | Yes | Weight: | 1280 KG |
| Dimension(L*W*H): | 2790*2010*940mm | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Gauge: | 7 GG, 9 GG, 5 GG, 10GG, 3-5-7 Multi-gauge, 2.5gg,3gg, ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 14gg |
| Knitting Width: | 72 Inch | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Product Name: | 3 System Computerized Flat Knitting Machine |
| Knitting System: | Single Carriage With Three System System | Multi-gauge: | 3-5-7 Multi-gauge , 8-10-12 Multi-gauge |
| Application: | Sweater Knitting , Fabric Knitting , Hat And Scarf Knitting | Keywords: | 3 System Computerized Flat Knitting Machine |
| Knittind Width: | 72 Inch | Machine Type: | Fully Jacquard Sweater Knitting Machine |
| After Warranty Service: | Video Technical Support | Port: | SHANGHAI Or NINGBO |
|
System
|
Single system ,double system ,three system.
|
|
Kintting width
|
52'' 56'' 60'' 72'' 80'' 100''
|
|
Gauge
|
7G ,8G, 9G,10G,12G,14G,16G
|

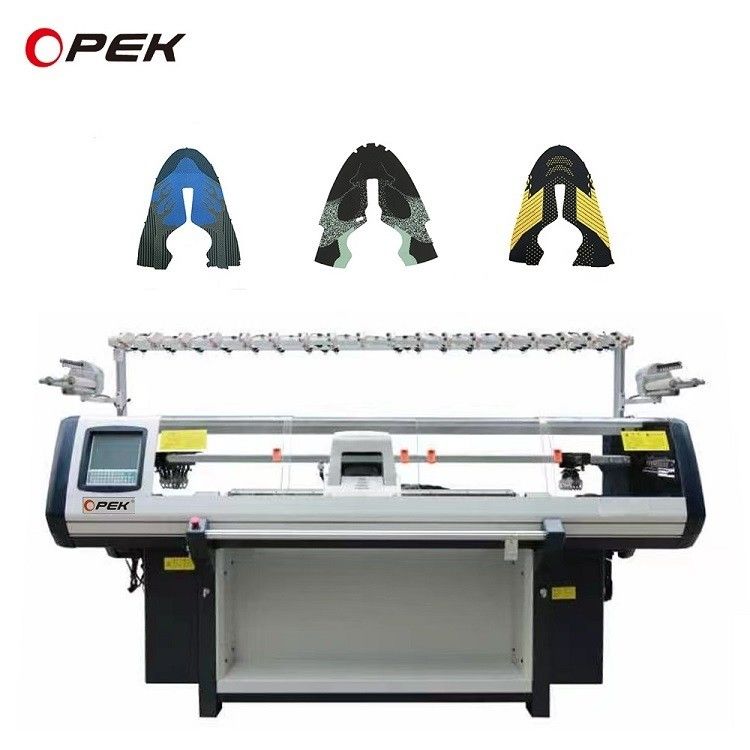

three system flat knitting machine
1:High speed &high output
2:CE and ISO 9001:2008 certificate.
3:Easy operation,knitting system:Single carrier with three system
4.Max speed:1.2m/s.
|
Gauge :
|
2.5gg,3gg, 3-5-7 multi-guague ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg,
8-10-12 multi-gauge ,14gg,16gg ,18gg
|
|
|
||
|
Knitting bed width :
|
52 /56 /60/72/80 inch
|
|
|
||
|
knitting function:
|
Knit ,miss,tuck,transfer, pointel, intarsia,jacquard,hide,or apparent shaping and other regular or irregular patterns.
|
|
|
||
|
Knitting speed:
|
Controlled by servo motor, 24 sections speed optional, max 1.2M/S.varies according to gauge and knitting condition
|
|
|
||
|
Knitting system:
|
Single carriage with three system
|
|
|
||
|
Needle bed:
|
Replaceable segment needle bed ,flat needle bed
|
|
|
||
|
Take down roller:
|
Programmed instruction,controlled by marching motor, changeable 24 levels and selectable scope: 0-99.
|
|
|
||
|
Transfer:
|
Combined cam box single or double system can work independently and one system can transfer the stitch While the other system keeps knitting.
|
|
|
||
|
Racking:
|
Controlled by servo motor racking within 2 inches and with fine adjusting function.
|
|
|
||
|
Protection:
|
The machine will automatically alarm if yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur.
|
|
|
||
|
Stitch system:
|
Controlled by stepping motor, 24 section stitch selectable, adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled.
|
|
|
||
|
Encoder:
|
Advanced encoder adopted.
|
|
|
||
|
Yam carrier:
|
2×8 Yarn carriers on each side of 4 guide rails, shiftable on any needle position(special instarsia carriers available).
|
|
|
||
|
Sinker system
|
Controlled by stepping motor, adjustable to different knitwear, have various results of shaping and patterns.
|
|
|
||
|
Power:
|
Singe-phase 220V, adopts advanced CMOS technology, having memorizing function at power shock stop.
|
|
|
||
|
Controller:
|
1. Screen:Adopt LCD industrial screen and figure interface,input device:USB. Internal storage 32M.The latest system 1G. A great amount of design files can be stored at the same time and they can be fetched out for using at any time as per production requirements.
|
|
|
||
|
|
2. Monitoring menu,each kind of operating parameter can be shown, and they can be adjusted at any time when the machine is running is visual and easy to understand and upgrade.
|
|
|
||
|
|
3. Free design is visual and easy to understand and upgrade
|
|
|
||
|
|
4.Multi language version :there are Chinese .English and Arabic etc. languages version ,the other language version set up shall according to customers requirement .
|
|
|
||
|
Volume and weight
|
Length×width×height: 2790×1100×1500mm Net weight :1280kg
|
|
|
||
