Product Details:
|
| Applicable Industries: | Garment Shops, Manufacturing Plant, Farms, Retail, Advertising Company | Condition: | New |
|---|---|---|---|
| Product Type: | SWEATER | Type: | Jacquard |
| Production Capacity: | 1.2m/S | Power: | 1.5 W |
| Knitting Method: | Double | Computerized: | Yes |
| Weight: | 1280 KG | Dimension(L*W*H): | 2790*2010*940mm |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Gauge: | 1.5 GG, 12 GG, 16 GG, 5 GG, 3-5-7 Multi-gauge, 8-10-12 Multi-gauge, 2.5gg,3gg, ,5gg ,7gg ,8gg, 9gg, 10gg, 12gg, 14gg | Knitting Width: | 52 Inch |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 2 Years |
| Core Components: | Motor, Bearing, Gear, Gearbox | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Product Name: | Double System Computerized Flat Knitting Machine | Knitting System: | Single Carriage With Three System System |
| Multi-gauge: | 3-5-7 Multi-gauge , 8-10-12 Multi-gauge | Application: | Sweater Knitting , Fabric Knitting , Hat And Scarf Knitting |
| Keywords: | 3 System Computerized Flat Knitting Machine | Knittind Width: | 52 Inch |
| Voltage: | 220V | Port: | SHANGHAI Or NINGBO |

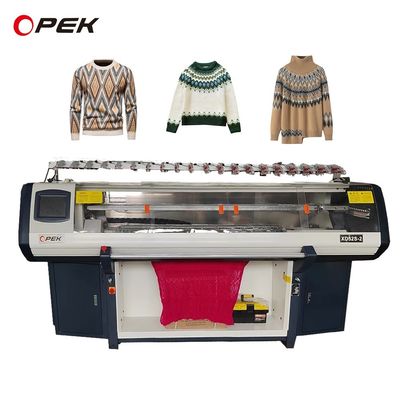

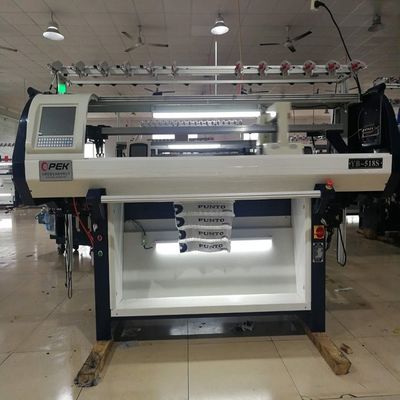

three system flat knitting machine
1:High speed &high output
2:CE and ISO 9001:2008 certificate.
3:Easy operation,knitting system:Single carrier with three system
4.Max speed:1.2m/s.
|
Gauge
|
2.5G,5G,7G,8G,9G,10G,12G,14G,multi gauge 3-5-4G
|
|
Knitting width
|
52 /56 /60/72/80 inch
|
|
Knitting function
|
Knit ,miss,tuck,transfer, pointel, intarsia,jacquard,hide,or apparent shaping and other regular or irregular patterns.
|
|
Knitting speed
|
Controlled by servo motor, 24 sctions speed optional, max 1.2M/S,varis according to gauge and knitting condition.
|
|
Needle bed
|
Replaceable segment neeedle bed
|
|
Knitting system
|
Single carriage with double system
|
|
Transfer
|
Combined cam box single or double system can work independently and one system can transger the stitch while the other sustem keeps knitting.
|
|
Racking
|
Controlled by servo motor racking within 2inches and with fine adjusting function
|
|
Protection
|
The machine will automactically alarm if yarn-breaking knots floating yarn rewind end of knitting,fail of racking needle breakage
error programming occur |
|
Power
|
Single phase 220V,adopts advanced cmos technology,having memorizing function at power shock stop
|
|
Encoder
|
Advanced encoder adopted.
|
