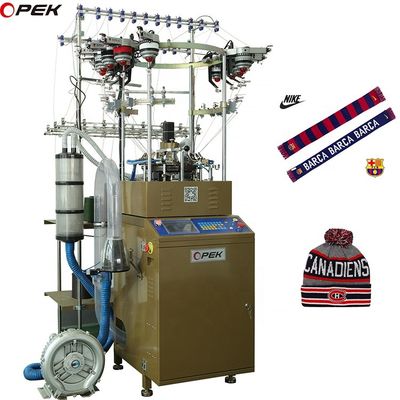

OPEK high speed cap and scarf knitting machine
Suit for knitting different type of scarves .
Can fast jacquard more than 6 colors on same line.
can knit very clear pictures and patterns which other machine can not finished .
|
Product Details:
|
| Applicable Industries: | Hotels, Garment Shops, Manufacturing Plant, Retail, Construction Works , Advertising Company | Condition: | New |
|---|---|---|---|
| Product Type: | Hat | Type: | Jacquard |
| Production Capacity: | 500sets/ Month | Power: | 1kw |
| Knitting Style: | Weft | Knitting Method: | Double |
| Computerized: | Yes | Weight: | 305kg |
| Dimension(L*W*H): | 930*750*1700MM | Warranty: | 2 Years |
| After-sales Service Provided: | Video Technical Support, Online Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Engineers Available To Service Machinery Overseas | Motor: | Servo Motor |
| Screen: | Touch Screen | Alarm: | Fully Auto Alarm |
| Add Oil System: | With Auto Lubrication | Certificate: | ISO9001 CE |
| System: | Fully Computerized Control | Voltage: | 220V/380V |
| Product Name: | Hat And Scarf Knitting Machine |
OPEK 365 high speed fully jacquard hat&scarf knitting machine ,this model is equipped with newest control system,high speed and stable 16# actuators(needle selectors)easy to operation.
This machine is suitable for :wool,acrylic,cotton yarn,blended raw materials,knitting a variety of single jacquard hats,scarves,headband and ribbing of 1*1,2*1,2*2...3D,HD products.
SPECIFICATIONS FOR OPEK 365 | ||||||
Cylinder Size | 7'' 8'' 9" 10'' | |
Needles | 144N-392N According to customer request | |
R.P.M | 120Rpm/Min | |
Color | 7 Feeds +4 Feeds ,Single feed 7-color knitting in the same row ,double feeding 4-color knitting in the same row .(single feed with double feed can exchange )Max for 14 color . | |
Main servo-motor | 1KW | |
Power Source | 110V/ 220V/380V ,50/60Hz | |
Auto lubrication | ||
Machine is equipped with 11 sets of 16# high-speed and stable selection actuators (needle selection ) | ||
1.Yarn Storage.Positive yarn storage could reduce resistance while the yarn is moving .It is really suitable forfabric with lack of elasticity and brittleness such as cashmere yarn,rabbit hair yarn.
2.Single feed with double feeds can exchange.
3.Fully range of automatic alarm device.
4.Automatic trimming function.
5.The density of knitware accurately adjust by stepping motor.
6.11 sets of 16# high-speed and stable selection actuators(needle selection).
7.Touch Screen.
8.Automatic counter
9.Servo motor control.High speed-high percision-stable.
10.Blower on-off automatically.
OPEK high speed cap and scarf knitting machine
Suit for knitting different type of scarves .
Can fast jacquard more than 6 colors on same line.
can knit very clear pictures and patterns which other machine can not finished .
OPEK high speed cap and scarf knitting machine
Suit for knitting different type of beanie caps , rib hats ,
ear hats and etc .
Can fast jacquard more than 6 colors on same line.
can knit very clear pictures and patterns which other machine can not finished .

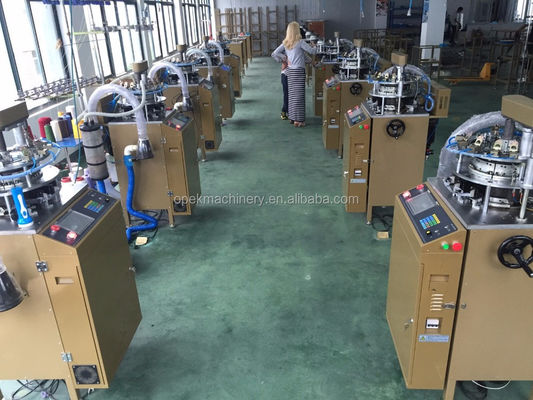

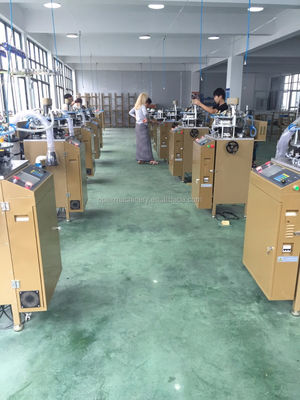

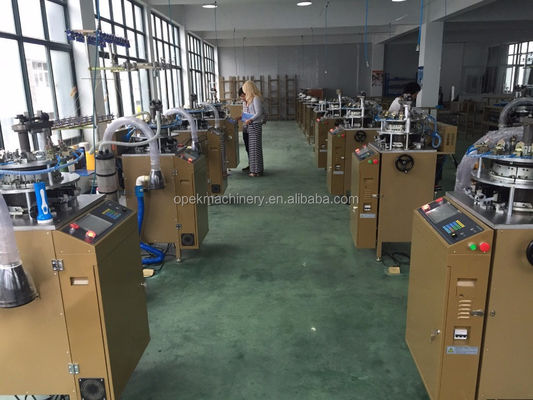

Our workshop
High speed cap and scarf knitting machine Packing | ||
Package | Wooden case | |
Size: | 850*950*1670mm | |
Net/Gross Weight : | 325/420 KG | |
Container Loading | 6sets/20GP | |
20 sets/40GP | ||
Suit for different type delivery .
Tip:Delivery to European market by train ,only cost 15-19 days !!
