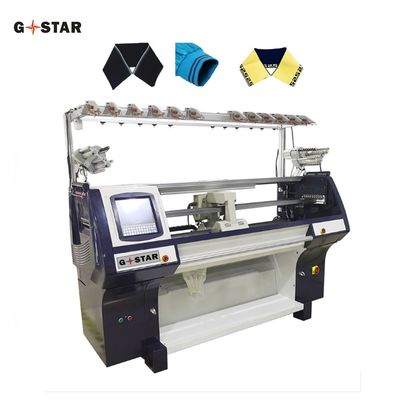

Speed Jacquard Tricotomas Double Carriage Collar Flat Knitting Machine in 80inch OPEK

Large Image : Speed Jacquard Tricotomas Double Carriage Collar Flat Knitting Machine in 80inch OPEK

Product Details:

Place of Origin:	Anhui, China
Brand Name:	OPEK

Payment & Shipping Terms:

Price:	$3,500.00/sets 1-9 sets

Contact Now

Speed Jacquard Tricotomas Double Carriage Collar Flat Knitting Machine in 80inch OPEK

Description

Applicable Industries:	Hotels, Garment Shops, Manufacturing Plant, Retail, Construction Works , Advertising Company	Condition:	New
Product Type:	Collar	Type:	Jacquard
Production Capacity:	500set/month	Power:	1.5 W, 220V/single Phase 50/60HZ
Knitting Method:	Single	Computerized:	Yes
Weight:	650 KG	Dimension(LWH):	260010001650mm
Warranty:	1 Year	Key Selling Points:	Sustainable
Gauge:	1.5 GG, 3 GG, 12 GG, 14 GG, 16 GG, 9 GG, 18GG, 16GG, 3-5-7 Multi-gauge, 8-10-12 Multi-gauge, 7G,8G,9G,10G,12G,14G,16G	Knitting Width:	80 Inch
Machinery Test Report:	Provided	Video Outgoing-inspection:	Provided
Marketing Type:	Hot Product 2019	Warranty Of Core Components:	1 Year
Core Components:	Motor, Other	Product Name:	Collar Knitting Machine
Width:	80inch	Knitting Speed:	Max1.2m/sec.
Yarn Carrier:	12yarn Carriers On 3double Rails	Needle Selection:	Fully Jacquard Selection Via Special Solenoids
Wooden Case:	260010001650mm	Knitting Style:	Flat

Product Description

Single carriage with single system, this S-Series computerized flat knitting machine are used digital technology to achieve the patterns of knit, transfer, tuck, pointelle, intarsia, jacquard, embroidery, apparent shape, hidden shape, and other

regular or irregular patterns knitting functions, can knit basic single or double jersey plain fabric, irregular multi-color jacquard, intarsia, cable and pointelle structure patterns, which suitable to knit by yarns of pure silk, mixed silk, synthetic, wool, acrylic, mixed fiber material etc. knitted for shaping fabric and accessories of collar, cardigan, rib ,cuff, scarf, picket and trousers etc.

Product parameter

GUAGE:	7G、8G、9G、10G、12G、14G、16G
Cam system：	Single carriage with single system
Width	52inch
Knitting speed	Max1.2m/sec.Knitting speed varies according to gauge,yarn and knitting condtion
Yarn carrier	12yarn carriers on 3double rails
Needle selection	Fully jacquard selection via special solenoids
Transfer	Two-way transfer,front or back,independent of carriage direction.
Needle bed	Replaceable segment needle bed
Stop motion	Yarn break,knot,press off,needle break,shock,over torque,piece count,over run, program error etc.
Drive	AC servo motor,tooth shape driving belt,no oil needed.Variable adjustable progammable speed levels.
Safety cover	Fully safety cover for anti-noise and dust proofing.Emergency stop buttons.
Fluorescent lamp	Inside of safety cover and fabric take down
Wooden case	260010001650mm
N./G. Weight	650kgs
Operation&display	LCD display Touch screen,Chinese、English and Spanish versions available.
Power	220V/single Phase 50/60HZ
