Product Details:
|
| Applicable Industries: | Garment Shops, Manufacturing Plant, Farms, Retail, Advertising Company | Condition: | New |
|---|---|---|---|
| Product Type: | Collar | Type: | Jacquard |
| Production Capacity: | 1.2m/S | Power: | 1.5 W |
| Knitting Style: | Weft | Knitting Method: | Single |
| Computerized: | Yes | Weight: | 900 KG |
| Dimension(L*W*H): | 2790*2010*940mm | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Gauge: | 12 GG, 14 GG, 16 GG, 9 GG, 10GG, 3-5-7 Multi-gauge |
| Knitting Width: | 52 Inch, 52 Inch | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Gearbox |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Knitting System: | Single Carriage With Three System System |
| Multi-gauge: | 3-5-7 Multi-gauge , 8-10-12 Multi-gauge | Application: | Collar Knitting , Fabric Knitting , Hat And Scarf Knitting |
| Keywords: | 1+1 Carriage System Computerized Flat Knitting Machine | Machine Type: | Fully Jacquard Flat Knitting Machine |
| Brand: | GSTAR/OPEK | Speed: | 1.2m/sec |

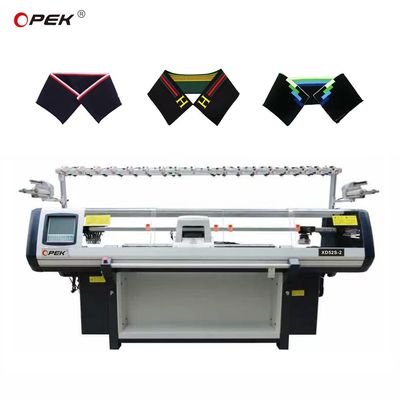

This system is automatic computerized flat knitting machine
It adopts digital technology to realize the knitting functions transfer tuck,eyelet stitch,jacquard,apparent shape, hidden shape and other regular pattern knitting functions.
It can knit basic stitch like plain stitch,rib fabric,links and interlock stitch,etc.
Irregular multi-color jacquard,twisted flower weft organization,cord weave,racked stitch,cable,intarsia,etc.
It is suitable to use synthetic,wool,acrylic,mixed fiber,yarn material etc to knit ready-made sweater,collar ,vamp,hat,gloves,scarf and accessories of cloth. So as to achieve multi-functional all-in-one machine

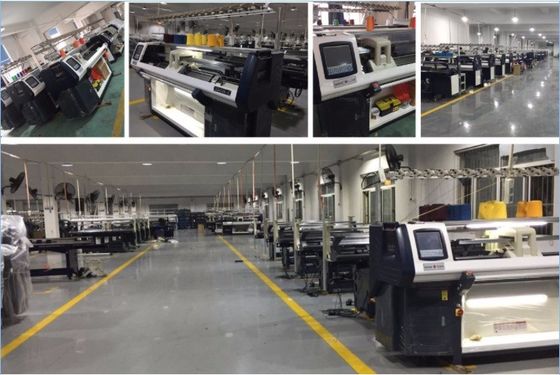

Workshop assembly line after layer upon layer of strict testing to ensure the stable and efficient work of the machine
Gauge : | 3G,3.5G,5G,7G,8G,9G,10G,12G,14G,16G,3-5-7G multi-gauge | ||||
Knitting width : | 32,36,48,52,56,60,66,68,72,80, 100 120 inch | ||||
knitting function: | Knit ,miss,tuck,transfer, pointel, intarsia,jacquard,hide,or apparent shaping and other regular or irregular patterns. | ||||
Knitting speed: | Controlled by sevro-motor with 32 sections optional, max speed reach 1.6M/S | ||||
Knitting system: | Single carriage with 2-system | ||||
Take down roller: | Computer programs instruction,stepper motor control and 32-stagetension selection with an adjustable range between 0-100 | ||||
Transfer: | Combined design, single or double cam system all can transfer together or separately. Also one cam do transfer, another cam system for knitting, which will achieve high production. | ||||
Racking: | Controlled by servo motor racking within 2 inches and with fine adjusting function. | ||||
Protection: | The machine will automatically alarm if yarn-breaking, knots, floating yarn, rewind, end of knitting, fail of racking, needle breakage, error programming occur, also set up the safety auto-lock protect device. | ||||
Stitch system: | Controlled by stepping motor, 32 section stitch selectable, adjustable scope supported by subdivision technology: 0-650, the stitch of the knitwear can be accurately controlled. | ||||
Needle selection | Advanced encoder reading pin.8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector. | ||||
Cutters and Grippers | Include 2 cutters and 4 grippers, controlled by 6 motors respectively(Optional) | ||||
Color-changing sytem： | 2×8 yarn feeders at the double side of 4 guide rails, shiftable on any needle position | ||||
Network | Has network interface,enable remote-monitoring via network,and connecting with ERP system. | ||||
Power: | Single-phase 220V/three-phase 380V,adopt advanced CMOS technology, having memorizing function at power shock stop. | ||||
Controller: | 1. Screen:Adopt LCD industrial screen and figure interface,input device:USB. Internal storage 32M.The latest system 1G. A great amount of design files can be stored at the same time and they can be fetched out for using at any time as per production requirements. | ||||
2. Monitoring menu,each kind of operating parameter can be shown, and they can be adjusted at any time when the machine is running is visual and easy to understand and upgrade. | |||||
3. Free design is visual and easy to understand and upgrade | |||||
4.Multi language version :there are Chinese .English and Arabic etc. languages version ,the other language version set up shall according to customers requirement . | |||||
Volume and weight | Length×width×height: 2500×850×1600mm Net weight :650kg | ||||
