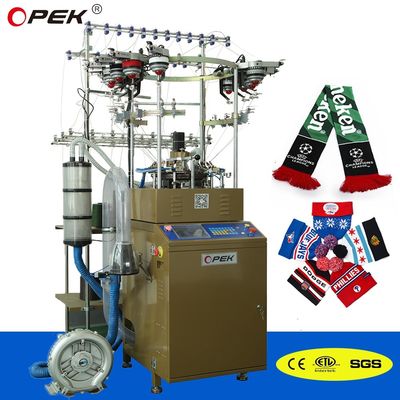

High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow

High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow
High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow

Large Image :  High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow

Product Details:
Place of Origin: China
Brand Name: OPEK
Payment & Shipping Terms:
Price: $13,900.00/sets 1-9 sets
Packaging Details: wooden case packing ,20 FT can load 12 sets ,40 FT can load 24 sets,for OPEK adult cap and scarf knitting machine.
Contact Now

High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow

Description
Applicable Industries: Manufacturing Plant, Home Use, Retail, Advertising Company Condition: New
Product Type: Fully Jacquard Scarf Knitting Machine Factory Type: Circular
Production Capacity: 500 Pcs/day Power: 1 W
Knitting Style: Warp Knitting Method: Single
Computerized: Yes Weight: 330 KG
Dimension(L*W*H): 930*750*1700mm Warranty: 2 Years
Key Selling Points: High Productivity Gauge: 8-10-12 Multi-gauge
Knitting Width: 9inch Machinery Test Report: Provided
Video Outgoing-inspection: Provided Marketing Type: New Product 2019
Warranty Of Core Components: 3 Years Core Components: Motor
Product Name: Fully Jacquard Scarf Knitting Machine Factory After-sales Service Provided: English-speaking Engineers
Application: Beanie/winter Hat Knitting Machine Type: High Speed Fully Computerized Jacquard Knitting Machine
System: Single System Keywords: Circular Kintting Machine
Color: Yellow Brand: Opek
Speed: 90-120RPM

High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow 0
Specification:
1. Cylinder Size : 7’’ 8’’ 9" 10’’
2. Needles : 144N-392N According to customer request
3. R.P.M : 60-120Rpm/Min.
4. Feeder : 8F , Max for 16 colors , Max 8colors jacquard in the same row .
5. Power Consumption : 1KW Servo motor
6. Power Source : 220V/380V ,50/60Hz
7. Full-Automatic Alarm device , Automatic Lubrication , Automatic Counter.
8. 7’’ touch screen in highest technology
9. Full computer control , Easy to operate
10. Packing size : 930x750x1700mm,Gross Weight.: 305KGS, Net Weight:250KGS
Advantages of OPEK Machine
High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow 1
High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow 2

1.Single System and Double System 2.Servo motor

Single system and double system can exchange automatically .
This system can improve 30% of the production capacity.
Single system can knit up to 7 colors in the same row.
double system can knit up to 4 colors in the same row.
Servo motor enables the machine to work with high speed and stability. It can work 24 hours without interruption.
High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow 3
High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow 4

3.Step motor control density

Density adjusted by step motor , easy to change and control
by touch screen

4.Automatic trimming function

Scissors controlled by the stepping motor; adjustable jacquard trimming length and adjustable automatic scissors start and stop in order to extend the life of scissors.
High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow 5
High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow 6

5.Actuator

11 sets of 16# high-speed and stable selection actuators(needle selection)

6.Alarm device

Full range of automatic alarm device
The device can make the detection function full, avoid fabric damage or other failures and improve weaving quality and efficiency
knitting samples
High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow 7

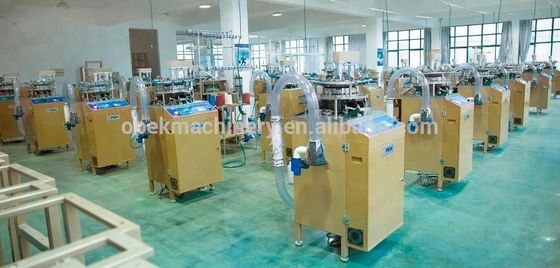

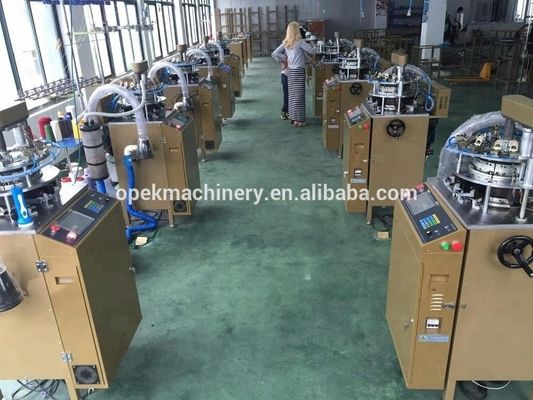

OPEK Machine Perfect Working in Customer Factory
High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow 8
OPEK English-Speaking Engineer Door to Door Service
High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow 9
Welcome to Visit Us
High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow 10
OPEK Exihibition Showing
High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow 11
High Speed Fully Computerized Jacquard Knitting Machine for Products in Yellow 12

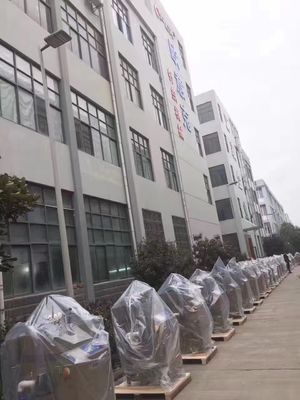

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
