Product Details:
|
| Applicable Industries: | Hotels, Garment Shops, Manufacturing Plant, Home Use, Retail, Construction Works , Advertising Company, Hat Factory | Condition: | New |
|---|---|---|---|
| Product Type: | Hat | Type: | Jacquard |
| Production Capacity: | 500sets/ Month | Power: | 1 W |
| Knitting Style: | Warp | Knitting Method: | Single |
| Computerized: | Yes | Weight: | 305 KG |
| Dimension(L*W*H): | 930*750*1700MM | Warranty: | 2 Years |
| Key Selling Points: | Sustainable | Gauge: | 3-5-7 Multi-gauge, 8-10-12 Multi-gauge |
| Knitting Width: | 9inch | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Marketing Type: | Hot Product 2019 |
| Warranty Of Core Components: | 3 Years | Core Components: | Motor |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Motor: | Servo Motor |
| Screen: | Touch Screen | Alarm: | Fully Auto Alarm |
| Add Oil System: | With Auto Lubrication | System: | Fully Computerized Control |
| Color: | Yellow | Voltage: | 220V/380V |
| Port: | Shanghai ,Ningbo Port |

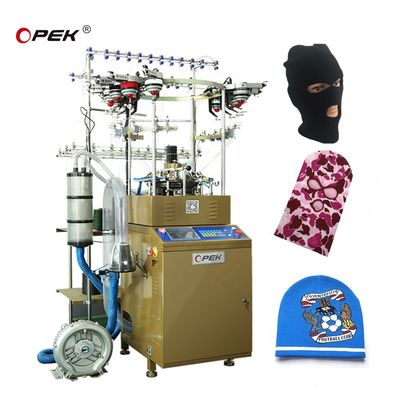

OPEK high speed jacquard hat knit machine
Specification
1. Cylinder Size : 7’’ 8’’ 9" 10’’
2. Needles : 144N-392N According to customer request
3. R.P.M : 120Rpm/Min.
4. Machine is equipped with 11 sets of 16# high-speed and stable selection actuators (needle selection )
5. Color : 7 Feeds +4 Feeds ,Single feed 7-color knitting in the same row ,double feeding 4-color knitting in the same row .(single feed
6. with double feed can exchange )Max for 14 color .
7. Auto lubrication
8. Main servo-motor : 1KW
9. Power Source :110V/ 220V/380V ,50/60Hz
OPEK cap making machine adopts the latest triangle design and uses superior material & the latest picture design system. Once program is loaded into the computer chip correctly,changing of pictures will be completed only within several minutes . It no need special skill , so the operation is really easy . So this knitting machine can be called a necessity for the production line of the hats and scarf industry
YOUR SUCCESS ,OUR MISSION!
OPEK high speed jacquard hat knit machine
| Cylinder size | Needles | System | Feeder | Power |
| 7"8"9"10" | 144N-392N | Single/Double | 7+4F | 220V/380V |
